Filters are predicates that allow rules to be applied selectively.

A filter can take a great many different forms.

Note

A scale is a type of filter, but is discussed separately.

Note

For more information, please see the GeoTools CQL documentation and GeoServer CQL tutorial.

Syntax

The basic syntax of a filter is:

rules:
  ...
  filter: ${<expression>}
  ...

where <expression> is any valid CQL/ECQL filter.

Note

Be aware that filters are applied to rules and so appear inside them, but outside of any symbolizers.

Types of filters

As mentioned above, the filter can be any valid construction made with CQL/ECQL (Extended/Contextual Query Language).

CQL is written using a familiar text-based syntax with strong similarities to SQL statements. One can think of a CQL expression as the "WHERE" clause of a SQL statement.

The following are all standard filter constructions:

Object comparison

This filter will test to see if a comparison to an attribute is true. It has the following form:

${<attribute> <operator> <value>}

where:

Attribute Required? Description Default value
<attribute> Yes That to which something is going to be compared. Typically an attribute name. May be case sensitive. N/A
<operator> Yes Method of comparison. Valid operators are =, <, >, <=, >=, <>, LIKE, ILIKE, BETWEEN, IS NULL, IN. NOT can be added to invert the comparison. N/A
<value> Yes That which the <attribute> is being compared to. Typically a static value such as a string or scalar, though can be an expression that evaluates to a static value. Can include mathematical operators such as +, -, *, /. Use single quotes for strings, as double-quotes will be interpreted as an attribute name. Omit quotes for scalar values. N/A

The following is a description of all available operators:

Operator Description
= Equals
< Less than (non-inclusive)
> Greater than (non-inclusive)
<= Less than or equal to (inclusive)
>= Greater than or equal to (inclusive)
LIKE Fuzzy matching for strings and other non-numeric attributes. Add % for multi-character wildcards, and _ for single-character wildcards.
ILIKE Case-insensitive version of LIKE
BETWEEN Tests if a value that is between two given values
IS NULL For testing against a NULL value
IN Used when specifying a list. Must be contained in the list for the statement to be true.
NOT Negates a boolean (true/false) condition. Can be used with an additional operator such as NOT LIKE or NOT BETWEEN.
<> Not equal (used when comparing a string or numeric value only)

Note

These operators are not case sensitive, but are shown here in all caps for legibility and consistency.

Spatial filters

Filters can be spatial in nature. Any valid spatial construction in WKT (Well Known Text) can be used. Spatial filters include INTERSECTS, DISJOINT, CONTAINS, WITHIN, TOUCHES, CROSSES, EQUALS, DWITHIN, and BBOX. NOT can be added to negate the condition.

For more details about these spatial filters and their syntax, please see the GeoServer ECQL reference or uDig CQL reference.

Compound statements

The filter can be a combination of statements. A common case is testing if the value of an attribute is greater than one value but less than another.

The syntax for creating compound statements is to use standard Boolean notation such as AND, OR, and NOT along with relevant parentheses.

For example, a filter where both statements need to be true would be:

filter: ${<statement1> AND <statement2>}

A filter where either statement would need to be true would be:

filter: ${<statement1> OR <statement2>}

Larger filters can be built up in this way:

filter: ${(<statement1> OR <statement2>) AND <statement3> OR NOT <statement4>}

In these examples, every <statement> is a valid filter.

In terms of precedence, AND is evaluated first, followed by OR, unless modified by parentheses. So, in the last example above, (<statement1> OR <statement2>) will be evaluated first, followed by the result of that AND <statement3>, and finally the result of that with OR NOT <statement4>.

Examples

Filter size based on an attribute

Filters are used to style different features of a layer based on certain conditions. The ILIKE operator is used to compare two strings (ignoring case) to see if they are similar. When using LIKE or ILIKE, the % character matches any number of letters (So %hwy matches any streetname ending in hwy). This example uses filters to distinguish between Highways, Roads, and other streets, and draw them using different colors and sizes:

feature-styles:
- rules:
  - filter: ${streetname ILIKE '%hwy'}
      symbolizers:
      - line:
          stroke-color: '#007799'
          stroke-width: 8
  - filter: ${streetname ILIKE '%rd'}
      symbolizers:
      - line:
          stroke-color: '#00AA00'
          stroke-width: 4
  - else: true
      symbolizers:
      - line:
          stroke-color: black
          stroke-width: 2

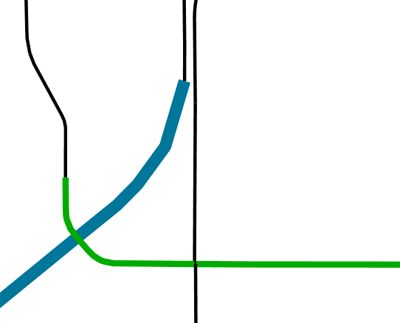

Filter based on road types

Filter color based on attribute value

Filters can also be used to color a map based on attributes of the data. The following example uses the YEARBLT attribute to color different lots based on the year they were built. The else rule applies only if no other filter rule applies

Note

The Recode function can perform the same functionality in a more compact syntax.

name: Year Built Filter feature-styles: - rules: - filter: ${YEARBLT > 2000} symbolizers: - polygon: stroke-color: '#000000' stroke-width: 0.5 fill-color: '#00FF00' - filter: ${YEARBLT > 1990 AND YEARBLT < 2000} symbolizers: - polygon: stroke-color: '#000000' stroke-width: 0.5 fill-color: '#22DD00' - filter: ${YEARBLT > 1980 AND YEARBLT < 1990} symbolizers: - polygon: stroke-color: '#000000' stroke-width: 0.5 fill-color: '#44BB00' - filter: ${YEARBLT > 1970 AND YEARBLT < 1980} symbolizers: - polygon: stroke-color: '#000000' stroke-width: 0.5 fill-color: '#668800' - else: true symbolizers: - polygon: stroke-color: '#000000' stroke-width: 0.5 fill-color: '#DD4400'

Filter based on attribute value

Filter by bounding box

Spatial filters can be used to filter a layer based on its geometry. The bbox filter can be used to select features that are contained within a bounding box. This example colors polygons orange within the bounding box, and blue outside the bounding box:

name: Spatial Filter
feature-styles:
- name: name
  rules:
  - filter: bbox(the_geom, -122.9, 42.36, -122.85, 42.28)
    symbolizers:
    - polygon:
         fill-color: '#99CC00'
  - else: true
    symbolizers:
    - polygon:
         fill-color: '#0099CC'

Detail of bbox filter

Filter by arbitrary geometries

Spatial filters can also be used to compare layer geometries against arbitrary geometries, not just bounding boxes. In this example, the within filter is used to select all buildings inside a triangular region defined using Well-Known Text (WKT) and color them green. All other features are colored blue:

feature-styles:
- name: name
  rules:
  - filter: within(the_geom, POLYGON ((-122.9075 42.3625, -122.8225 42.3625, -122.8268 42.2803, -122.9075 42.3625)))
    symbolizers:
    - polygon:
        fill-color: '#00CC00'
  - else: true
    symbolizers:
    - polygon:
        fill-color: '#0099CC'

Filter using within
